Reel Stand - Narrow

SKU

RN-STAND

Narrow size base jack stands for Parallel Reel Payout (PRP) or other applicable reels

Skip to the beginning of the images gallery

BHS Reel Stands make up the base frame of a Narrow Parallel Reel Payout (PRP-N) , which are designed for high-capacity cable storage and ensure that cables will not become tangled during payout. Reel Stands are designed to hold up to five free-spinning Reels.

BHS Reel Stands are constructed from heavy-duty steel for added performance and durability. A 2-inch solid-steel center shaft firmly supports up to five reels and multiple wire types.

Four-way fork pockets make transportation of the stand quick and easy. Optional casters give the stand even more mobility. Narrow model allows transportation through 34-inch doorways.

Our durable Reel Stands make cable installation simple by allowing workers to access an even payout of cable products from up to five reels. Individual reel hubs can be locked when particular cables are not needed.

Trust BHS for your heavy-duty Reel Stands. Call 1.800.BHS.9500 to learn more about our Electrical Equipment or to find a local dealer.

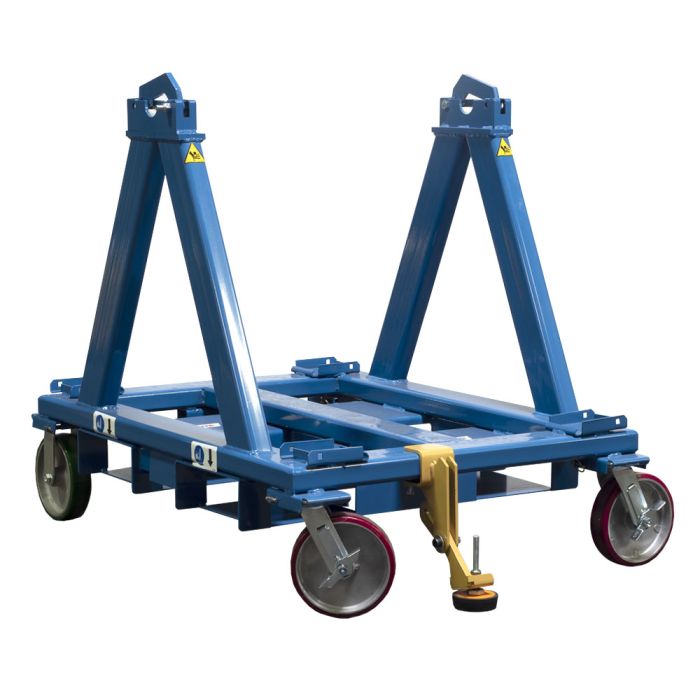

Model RN-STAND pictured with optional casters and pull brake

Features and Benefits

Heavy-duty steel construction for added reliability, Four-way fork pocket design
Fork pockets enable transporting from the ends or sides (PRP only) of the unit by pallet truck or forklift, allowing optimum positioning (pallet truck not compatible with casters option)
2” (51 mm) solid steel center shaft
Shaft safety locks equipped with locking pin
Heavy duty steel tube base frame design for maximum durability
0.75” (19 mm) UHMW alignment strips for center shaft prevent wear of components
Narrow models feature a shortened base frame designed to fit 34” (864 mm) minimum door openings for use inside an existing facility or new construction

Options

Casters (PRP-C): 8” (203 mm) corrosion resistant urethane casters for mobility (2 locking swivel casters and 2 non-locking, fixed casters)
Floor Lock (89822002): Locking floor brake prevents unwanted movement of the unit
Pull Brake Clamp (PRP-PB-C): One drop-down self-leveling steel arm capped with neoprene pad. Order four per PRP unit for maximum stability during cable payout.
Handle (PRP-HDL-C): One bolt-on clamp handle for maneuvering PRP frame. Handle slides out of the receiver tube and can be oriented in any direction. Order up to four handles per frame.
Auxiliary Ground Reel & Attachment (PRP-AUX): Add a single spinning reel to the outer frame of the reel stand; includes R-1 Reel and attachment mechanism
1 1/2" Shaft (29815059): Shaft for use with existing third-party reels
