Parallel Reel Payout Trailer
Only %1 left
SKU
PRP-TRL
The Parallel Reel Payout Trailer (PRP-TRL) is a total turn-key solution for on-site cable pulling.
The Parallel Reel Payout Trailer (PRP-TRL) is a turnkey solution for dispensing cable at the installation site. The PRP-TRL consists of two to three rotating, PRP-1's (Parallel Reel Payout units with One Single Reel and One 4-Position Reel) mounted on a single trailer. Customizable arrangements of free-spinning and multi-compartment reels are available on request. Simply preload the job’s required cable, hitch the trailer to a truck, and haul it to the work site.

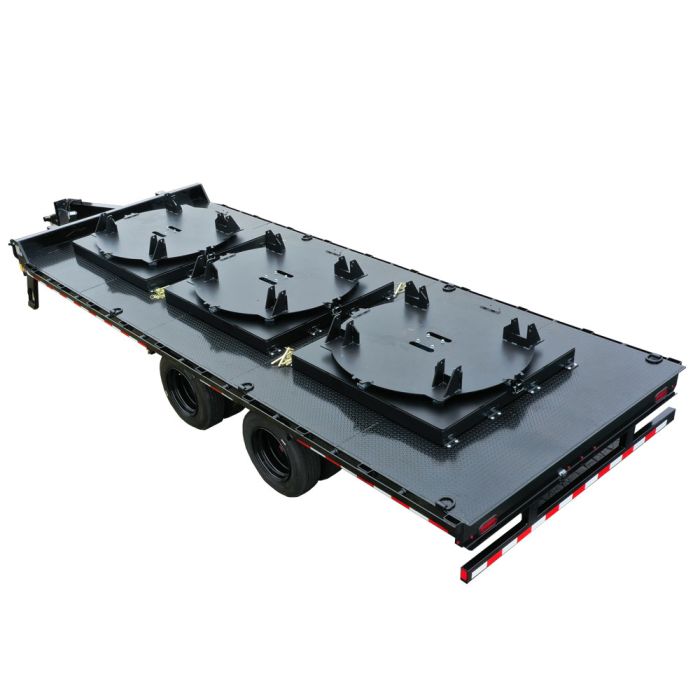

Lock the trailer in place and rotate PRP units to face the direction of cable pulls. With two to three payout devices on a single frame, the PRP-TRL allows construction electricians to complete multiple pulls and on-site cable paralleling with a single, all-purpose solution. Turntable bases allow users to pull cable in any of 360 degrees, all without moving the trailer to reach different conduit systems.
Parallel Reel Payouts simplify cable pulls with smooth payout and precise control over multiple reels. Lock unwanted compartments while freely pulling the desired cable, or pull several cables at once. Custom reel designs allow users to configure the PRP for specific jobs.
To learn more about cable-handling equipment from BHS, call our sales team at 1.800.BHS.9500.
Features & Benefits:
- Complete, turnkey solution for on-site cable pulls
- Two to three heavy-duty steel Parallel Reel Payout units mounted on a trailer
- Turntable bases allow PRP units to face any direction without moving the trailer
- Custom sets of fixed and free-spinning reels available
- Individual hub locking prevents unwanted payout
- Designed to fit inside enclosed tractor trailers for long haul transport
- Overall trailer dimensions vary per model
|
Model |
Number of Mounted PRP’s |
GVWR* |
Payload |
Curb Weight (Trailer Only) |
Deckover Trailer |
Deck Height |
Width |
Length |
Coupler Type |
|
PRP-TRL-14 |
(2) PRP-1’s |
14,500 lb / 6577 kg |
11,900 lb / 5398 kg |
2,600 lb / 1179 kg |
No |
24” / 610 mm |
98” / 2489 mm |
14’ / 4267 mm |
Adjustable 2 5/16” Ball |
|
PRP-TRL-22 |
(3) PRP-1’s |
14,500 lb / 6577 kg |
11,100 lb / 5035 kg |
3,400 lb / 1542 kg |
No |
24” / 610 mm |
98” / 2489 mm |
22’ / 6705 mm |
Adjustable 2 5/16” Ball |
|
PRP-TRL-24 |
(3) PRP-1’s |
32,000 lb / 14515 kg |
26,000 lb / 11793 kg |
6,000 lb / 2722 kg |
Yes |
32” / 813 mm |
101” / 2565 mm |
24’ / 7315 mm |
Adjustable Pintle Hitch |
*Note: Capacity of tow vehicle must be properly equipped to tow Gross vehicle weight rating (GVWR) weights listed
