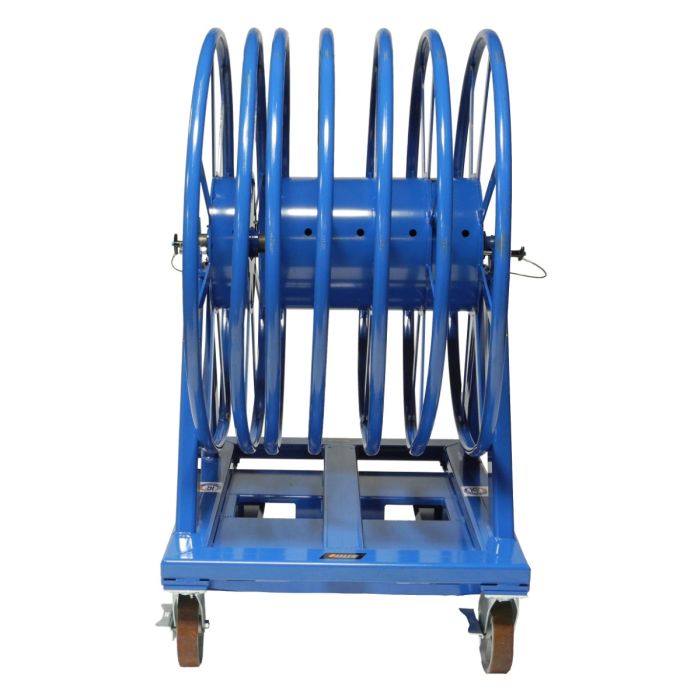

Narrow Parallel Reel Payout

Only %1 left
SKU
PRP-N
The PRP-N is Narrow models are built with a 33.75” base to easily fit through 34” doors and tight aisles and is equipped with four-way fork pockets for convenient transport and optimal positioning of the unit.

The BHS Narrow Parallel Reel Payout (PRP-N) simplifies cable pulling with free-spinning, multi-compartment reels, providing an even payout. The PRP-N is Narrow models are built with a 33.75” base to easily fit through 34” doors and tight aisles and is equipped with four-way fork pockets for convenient transport and optimal positioning of the unit. The PRP-N is available in several models with 6 reel combinations to hold multiple cables on one master unit. Optional casters allow the PRP-N to be maneuvered manually.

Features & Benefits:

  • Narrow models feature a shortened base frame designed to fit 34” (864 mm) minimum door openings for use inside an existing facility or new construction
  • Heavy-duty steel construction for added reliability
  • Four-way fork pocket design enables transporting from the ends or sides of the unit by pallet truck or forklift, allowing optimum positioning (pallet truck not compatible with casters option)
  • 2” (51 mm) solid steel center shaft
  • Shaft safety locks equipped with locking pin
  • Free-spinning compartments provide an even payout
  • Individual hub locking to prevent unwanted payout when fewer cables are required
  • 2” x 4” x 0.25” (51 mm x 102 mm x 6 mm) wall tube base frame design for maximum durability
  • 0.75”, 1”, and 2.5” (19 mm, 25 mm, and 64 mm) arbor holes for a variety of wire gauges
  • 0.75” (19 mm) UHMW alignment strips for center shaft prevent wear of components

Model

Configuration

Overall Height

Overall Width

Overall Length

Shipping Weight

Rated Load Capacity

Height with Casters

PRP-N-1

RN-STAND + RN-1 + RN-4

55.31” / 1405 mm

33.75” / 858 mm

44” / 1118 mm

715 lb / 325 kg

5,000 lb / 2268 kg

61.31” / 1557 mm

PRP-N-2

RN-STAND + (2) RN-1 + RN-3

55.31” / 1405 mm

33.75” / 858 mm

44” / 1118 mm

820 lb / 372 kg

5,000 lb / 2268 kg

61.31” / 1557 mm

PRP-N-3

RN-STAND + (3) RN-1 + RN-2

55.31” / 1405 mm

33.75” / 858 mm

44” / 1118 mm

845 lb / 384 kg

5,000 lb / 2268 kg

61.31” / 1557 mm

PRP-N-4

RN-STAND + (4) RN-1

55.31” / 1405 mm

33.75” / 858 mm

44” / 1118 mm

871 lb / 395 kg

5,000 lb / 2268 kg

61.31” / 1557 mm

PRP-N-4-1

RN-STAND + RN-1 + RN-4-1

55.31” / 1405 mm

33.75” / 858 mm

44” / 1118 mm

871 lb / 395 kg

5,000 lb / 2268 kg

61.31” / 1557 mm

PRP-N-5

RN-STAND + (5) RN-1

55.31” / 1405 mm

33.75” / 858 mm

44” / 1118 mm

871 lb / 395 kg

5,000 lb / 2268 kg

61.31” / 1557 mm

Casters (PRP-C)
8” (203 mm) quick disconnect, corrosion resistant urethane casters for mobility (2 locking swivel casters and 2 non-locking, fixed casters)
Floor Lock (PRP-FL)
Locking floor brake prevents unwanted movement of the unit
Pull Brake Clamp (PRP-PB-C)
One drop-down self-leveling steel arm capped with neoprene pad. Order four per PRP unit for maximum stability during cable payout.
Handle (PRP-HDL-C)
One bolt-on clamp handle for maneuvering PRP frame. Handle slides out of the receiver tube and can be oriented in any direction. Order up to four handles per frame.
Auxiliary Ground Reel & Attachment (PRP-AUX)
Add a single spinning reel to the outer frame of the reel stand; includes R-1 Reel and attachment mechanism
