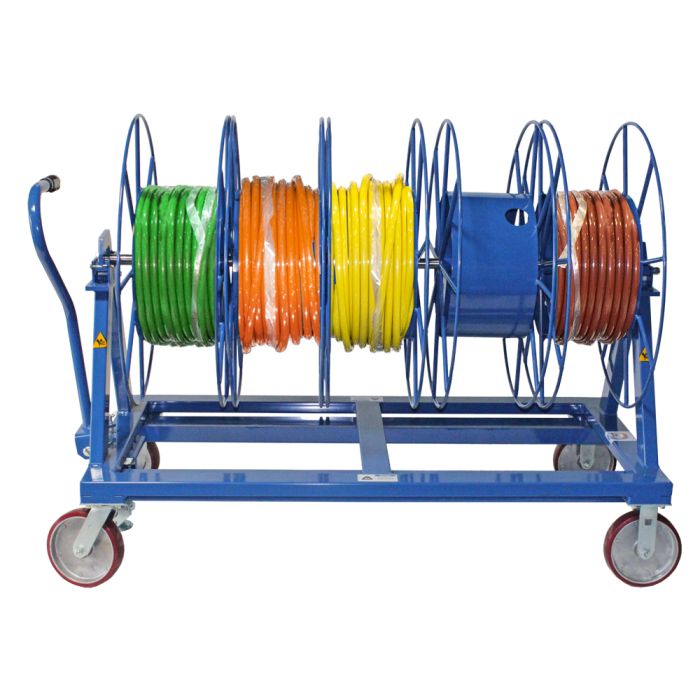

Parallel Reel Wagon

The Parallel Reel Payout Wagon (PRW) transports high-volume cable reels with or without additional material handling equipment. This unit features a slim profile to fit easily through 34-inch door openings, while two-way fork pockets provide portability via lift truck. Either way, a reliable locking pin keeps the shaft safely motionless during travel. Heavy-duty casters move easily through narrow aisles, and an integrated floor lock keeps the unit stable during cable pulls.

This unit features a slim profile to fit easily through 34-inch door openings, but it is sized to carry up to 5,000 pounds of product. All-steel construction and a protective powder-coat finish provide a lifetime of service. The PRW-6032 is available with virtually any combination of reels to meet specific applications, from custom paralleling to long-term storage. Free-spinning and fixed-compartment reels allow users to customize the unit to match distinct cable-pulling requirements.

Call 1.800.BHS.9500 to learn more about the Parallel Reel Payout Wagon and other cable-handling solutions from BHS.

Features & Benefits:

• Heavy-duty steel construction for added reliability
• Two-way fork pocket design
• 2” (51 mm) solid steel center shaft
• Shaft safety locks equipped with locking pin
• Free-spinning compartments provide an even payout
• 0.75”, 1”, and 2.5” (19 mm, 25 mm, and 64 mm) arbor holes for a variety of wire gauges
• 0.75” (19 mm) UHMW alignment strips for center shaft prevent wear of components
• Includes pivoting handle and vertical locking pin
• Fits through a 34” (864 mm) door opening
• 4 Casters included, (2) swivel with brake and (2) rigid poly
