Mobile Forklift Battery Extractor

Overview

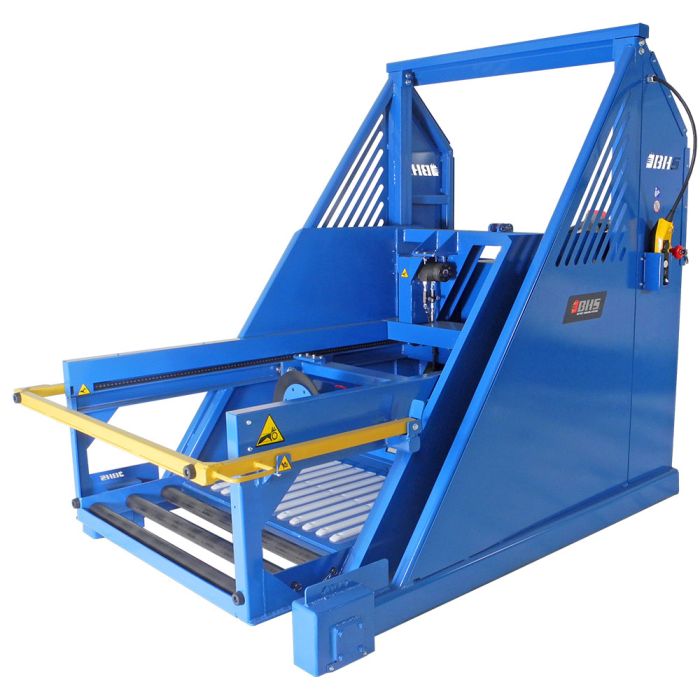

The BHS Mobile Battery Extractor (MBE) is a self-contained extractor that enables battery change-outs anywhere in a facility. The versatile MBE handles a wide variety of applications and is recommended for up to 50 battery changes per day.

Our engineers designed the MBE with safety, efficiency, and durability in mind. A pendant control makes operation easy and an Operator Shield separates the roller compartment from staff.

The Mobile Battery Extractor has heavy-duty construction and a powder coat finish for extra durability. We use standard industrial components to ensure the ability to find parts locally. The low-maintenance design keeps operating costs to a minimum.

Rubber Bumpers protect lift trucks and the extractor during change-outs. Compartment rollers, rear friction strips, and a Battery Containment Bar make transporting batteries safe and easy.

Increase your productivity with a durable and efficient Mobile Battery Extractor. Contact our sales team at 1.800.BHS.9500 to learn more about Battery Carts and Carriages or to find a local dealer.

Note: 16-foot (4.88-meter) aisle clearance required.

Features & Benefits

24 V dc powerhead eliminates need for a pallet truck
Pendant control for ease of operation
Hydraulic-powered with vacuum extraction
Operator Shield separates operator from roller compartment
Large 2.4” (61 mm) diameter rollers standard
Combination of compartment rollers and rear friction strips provides increased battery stability during transport
Low-maintenance design reduces operating costs
Built-in battery and charger for convenience
Standard industrial components allow for local parts availability
Heavy-duty construction for added reliability
Durable powder coat finish resists both acid and scratches
Battery Containment Bar encloses compartment to secure battery during transport
Lowest roller height of any powered BHS equipment reaching 3.5” (89 mm)
4,000 lb (1814 kg) and 5,000 lb (2268 kg) capacities are available
Rubber Bumpers protect the industrial lift truck fleet during battery change-out

Mobile Battery Extractors will only ship as a dedicated freight item. Therefore, the LTL shipping quotes provided through the web store may not be accurate. Please call to guarantee the accuracy of the quote prior to order.

Specifications

	MBE-42	MBE-42-5
Max. Load Capacity 1	4,000 lb / 1814 kg	5,000 lb / 2268 kg
Operating Voltage	24 V dc	24 V dc
Hydraulic Pump Type	Gear, Fixed Displacement	Gear, Fixed Displacement
Hydraulic Pump Displacement	1.3 gal/min / 4.9 L/min	1.3 gal/min / 4.9 L/min
*Raise / Lower Speed (maximum)**	8.8 ft/min / 9.4 ft/min 0.044 m/s / 0.048 m/s	8.8 ft/min / 9.4 ft/min 0.044 m/s / 0.048 m/s
Battery Attachment	Vacuum Standard, Magnet Optional	Vacuum Standard, Magnet Optional
Vacuum Cup	12” / 305 mm Dia.	12” / 305 mm Dia.
Vacuum	21” Hg / 0.73 kg/cm2	21” Hg / 0.73 kg/cm2
Optional Magnet	4” x 12” / 101 mm x 305 mm	4” x 12” / 101 mm x 305 mm
Primary Drive Chain Size	#50	#50
Rated Draw Bar Pull	1,125 lb / 510 kg	1,125 lb / 510 kg
Roller Diameter	2.4” / 61 mm	2.4” / 61 mm
Roller Shaft Size	0.75” / 19 mm Hex	0.75” / 19 mm Hex
Battery Width	7.5” Min / 41” Max 191 mm Min / 1041 mm Max	7.5” Min / 41” Max 191 mm Min / 1041 mm Max
Battery Length	18” Min / 49” Max 457 mm Min / 124 mm Max	18” Min / 49” Max 457 mm Min / 1244 mm Max
Battery Height	21” Min / 32.5” Max 533 mm Min / 825 mm Max	21” Min / 32.5” Max 533 mm Min / 825 mm Max
Overall Dimensions (L x W x H)	108” x 63.5” x 79.5” 2743 mm x 1613 mm x 2019 mm	119” x 63.5” x 79.5” 3023 mm x 1613 mm x 2019 mm
Slide Strip Length	23.5” / 597 mm	23.5” / 597 mm
Roller Width	41.88” / 1064 mm	41.88” / 1064 mm
Extended Arm Reach (Beyond Roller Bed)	10.5” / 267 mm	10.5” / 267 mm
Extractor Arm Travel Speed	22 ft/min / 0.11 m/s	22 ft/min / 0.11 m/s
Service Weight (unloaded)	3,650 lb / 1655 kg	3,840 lb / 1742 kg
Turning Radius	8’ / 2.44 m	9’ / 2.74 m
Min. Service Aisle	16’ / 4.88 m	17’ / 5.18 m
Battery Compartment Depth	49” / 1245 mm with Vacuum 45” / 1143 mm with Magnet	49” / 1245 mm with Vacuum 45” / 1143 mm with Magnet
Battery Compartment Width	42” / 1067 mm	42” / 1067 mm
Wheelbase	80” / 2032 mm	93.5” / 2375 mm
Ground Clearance (Inside Frame Elevated 1” / 25 mm)	0.75” / 19 mm (Outside Frame Fixed)	0.75” / 19 mm (Outside Frame Fixed)
Grade Clearance	2%	2%
Floor to Roller Height	3.5” Min / 33.5” Max 89 mm Min / 851 mm Max	3.5” Min / 33.5” Max 89 mm Min / 851 mm Max
Max Travel Speed*	155 ft/min / 0.787 m/s Loaded 200 ft/min / 1.016 m/s Unloaded	155 ft/min / 0.787 m/s Loaded 200 ft/min / 1.016 m/s Unloaded
Controls	5 Button Side Mounted Tethered Pendant	5 Button Side Mounted Tethered Pendant

Options

Lead Acid Battery (MBE-LA): Lead acid battery instead of maintenance free battery pack
Magnet Extraction (MBE-MAG): Ideal when batteries are too narrow for vacuum extraction
Fleet Tracker® (FLT-IIOT): BHS Fleet Tracker is a cloud-based fleet-management system, with detailed reporting that allows users to right-size their fleets for optimal efficiency. Connection to the IIoT allows managers to measure the health of batteries, stands, and trucks by logging into a secured Web Portal. Fleet Tracker’s touchscreen HMI mounted to the Mobile Battery Extractor guides users to charged batteries, posts maintenance reminders, and updates the status of battery assets to the cloud. The Fleet Tracker system improves battery health, improves change-out efficiency, and gives managers the real-time data they need to eliminate waste by matching assets to needs exactly.
