Mechanical Straddle Vertical Reciprocating Conveyor

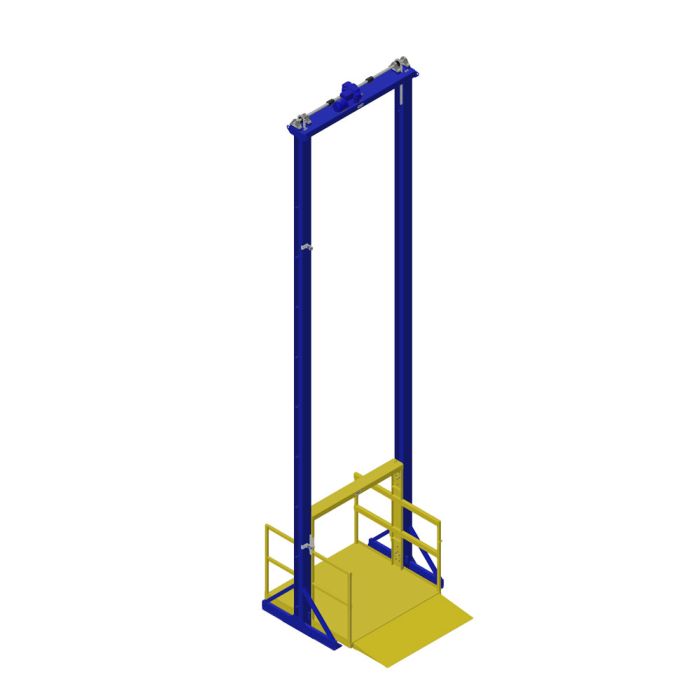

Mechanical Straddle Vertical Reciprocating Conveyors (VRCs) from BHS provide a quick, cost-effective solution for moving bulky materials between levels. They’re some of our fastest-moving lifts, with a two-post straddle design that provides seamless integration into most facilities.

Effortlessly move full pallets, loaded carts, materials, and equipment with 25 feet (7.62 meters) of vertical travel. That’s more than enough for most mezzanines, assembly lines, and multi-story facilities. Like all BHS VRCs, the VRC-MS provides the material-handling benefits of a freight elevator with a much lower cost of ownership.

Mechanical lift components provide reliable service with low maintenance requirements. They also improve travel time compared to hydraulic models, moving loads between levels at a rate of 28 feet (8.5 meters) per minute.

Models are available with load capacities of 3,000 pounds (1,361 kilograms) or 6,000 pounds (2,722 kilograms), but all BHS Mechanical VRCs use a two-post straddle design to support large carriage platforms. Choose between four of these platform sizes, ranging from 50 by 50 inches (127 by 127 centimeters) up to 90 by 96 inches (228.6 by 243.84 centimeters).

Mechanical Straddle VRCs are loaded with safety features. The system prevents access to moving carriages with mechanical interlocks and position sensors. Additional proximity sensors prevent gaps between loading areas and carriages. An emergency cam catch arrests the platform in the event of chain failure — but tension sensors monitor chain integrity, so failure is extremely unlikely in the first place.

Optional features like ramps, slide gates, and high-speed drive systems help your VRC-MS slot seamlessly into your facility. We offer custom carriages to match uncommonly shaped materials, and fully custom models are available on request. Contact the BHS sales team at 1.800.BHS.9500 to discuss your facility’s needs.

Features & Benefits

• Vertical conveyance with a lower cost of ownership than freight elevators
• Vertical travel height of 25’ (7.62 m)
• Moves loads between levels, from floor to mezzanine, or from ground-level to elevated conveyor systems
• Two-post straddle design provides high power with limited footprint
• Available with lifting capacities of 3,000 lb (1,361 kg) or 6,000 lb (2,722 kg)
• Choose from four carriage platform sizes: 50” x 50” (127 cm x 127 cm), 60” x 60” (152.4 cm x 152.4 cm), 72” x 72” (182.88 cm x 182.88 cm), or 90” x 96” (228.6 cm x 243.84 cm)
• Travel speed of 28 ft/min (8.5 m/min) is fastest among BHS VRCs
• Safety features include interlocks, position sensors, and emergency drop locks
• Proudly designed and manufactured in the USA
