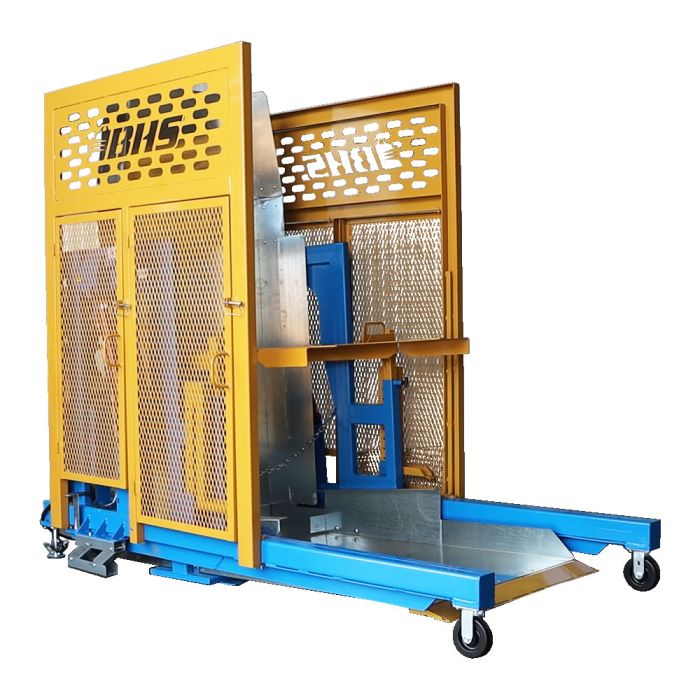

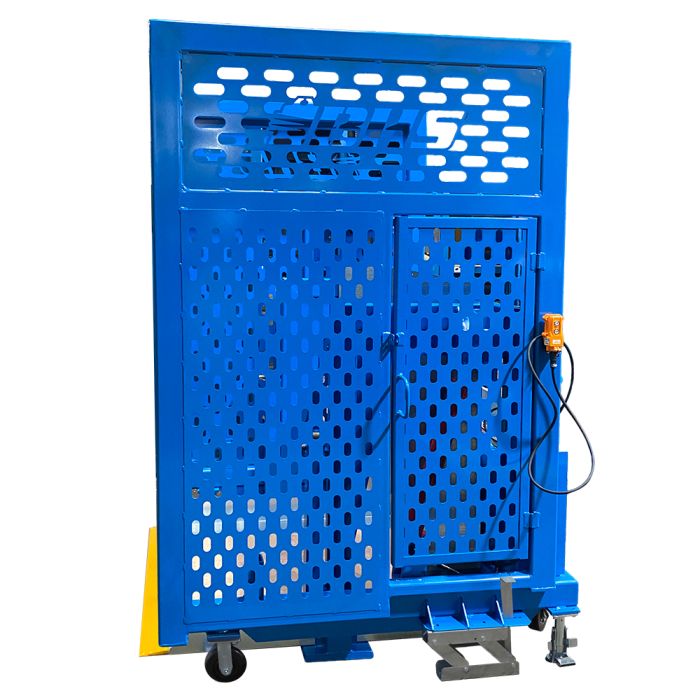

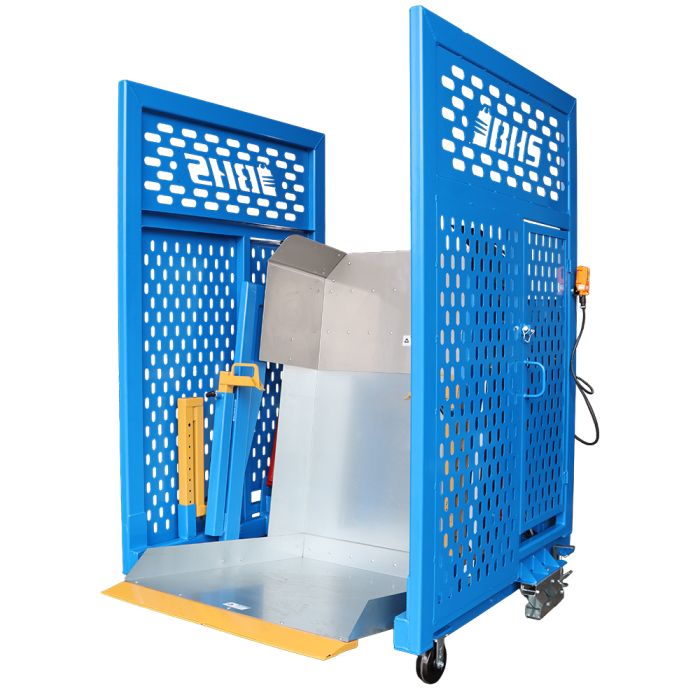

Mobile Gaylord Dumper
Mobile Gaylord Dumpers (GLD) provide full-service material handling for Gaylord containers and other pallet-sized bins. An adjustable restraint bar holds all types of pallet-sized containers in place for dumping contents.
Mobile Gaylord Dumpers were designed specifically for Gaylord containers. Choose between models rated for loads of 2,000 pounds or 4,000 pounds. Both designs feature rugged steel construction and an impact- and chemical-resistant powder coating for optimal strength and durability.
Custom-designed Gaylord Dumpers are also available to meet unique specifications. Learn more about Gaylord Dumper and other Stationary Tilt Tables from BHS by calling the sales team at 1.800.BHS.9500.
Features & Benefits
- Tilts and empties pallet-sized containers
- Effortlessly empties contents of Gaylords
- Adjustable restraints allows handling of all sizes of Gaylords, including D and E
- Heavy-duty steel construction
- Powder coating resists scratches and corrosion
- Braided wire hydraulic lines extend longevity with superior burst strength
- Closed hydraulic circuit limits maintenance tasks
- Smooth-rolling casters provide total mobility
- Dual floor brakes hold the unit in place during use
- Simple, push button operation positions load for access or dumping
- Units can be custom-built to any specifications
- Included Handy Hook aides in ergonomic removal of stubborn contents
Model |
Capacity |
Compartment Width |
Overall Width |
Overall Depth |
Overall Height |
Overall Height when Dumping |
Tip Height |
Weight |
GLD-2K-M |
2,000 lb (907 kg) |
43.5” (1105 mm) |
56 13/16” (1443 mm) |
66 1/16” (1678 mm) |
56 13/16” (1443 mm) |
129 3/16” (3281 mm) |
54 5/8” (1387 mm) |
990 lb (449 kg) |
GLD-4K-M |
4,000 lb (1814 kg) |
43.5” (1105 mm) |
56 13/16” (1443 mm) |
66 1/16” (1678 mm) |
56 13/16” (1443 mm) |
129 3/16” (3281 mm) |
54 5/8” (1387 mm) |
1060 lb (481 kg) |
Compatible with gaylords 14”–50” (356 mm–1270 mm) in height and up to 52” (1321 mm) in depth. Gaylords must have rigid base.
