Manual Transfer Trolley

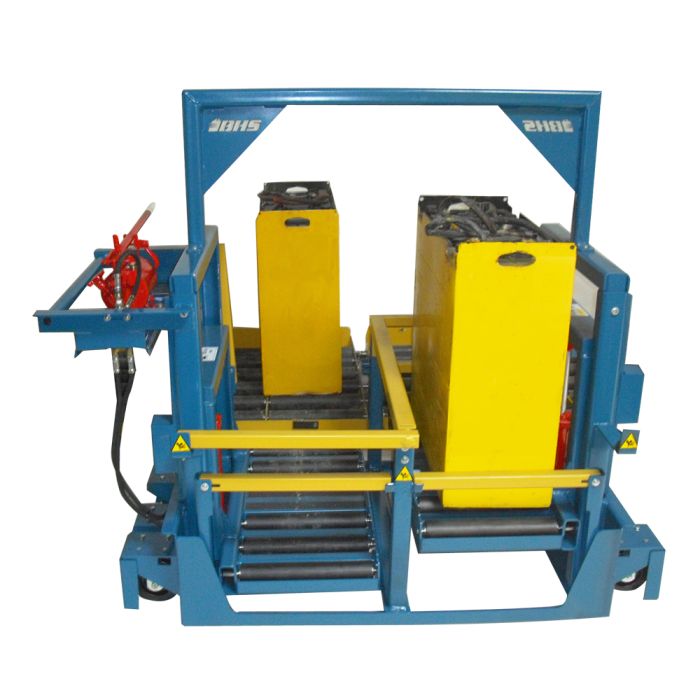

The BHS Manual Transfer Trolley (MTT16-2) allows for single person forklift battery changer for smaller battery fleets and contains two 16" (406 mm) battery compartments, each independently controlled by the hand pump to lift and lower for proper battery transfer height. Each compartment is designed to hold industrial batteries weighing up to 1,100 lb (499 kg) each. Coupled with the standard guide track, the MTT16-2 is easily pushed by hand for smooth and efficient battery change-outs. The BHS Bridge Trolley (MTT16-2) provides mechanical assistance during battery change-outs as batteries are transferred manually along roller beds.

Features & Benefits

• Compact design for areas with limited space
• Rack and pinion bed leveling ensures compartments remain level during battery transfer
• Large 6” (152 mm) phenolic wheels protect floors and provide low rolling resistance
• Floor locks provide additional safety
• Large 2.4” (61 mm) diameter rollers standard
• Spark-proof poly rollers make transfers safe and easy
• Battery Containment Bars enclose compartments to secure batteries during transport
• Designed for pallet jack and light picker applications equipped with roller beds
• Two independently controlled roller compartments
• Angle Guide Track (SGT-A) provides alignment and guidance of the trolley (sold separately)
• Steel End Stops (TRK-ES) prevent unit from running off of guide track (sold separately)
• 3.88″ to 13.88″ (99 mm to 353 mm) roller bed height
