Hardwood Wash Station

Only %1 left

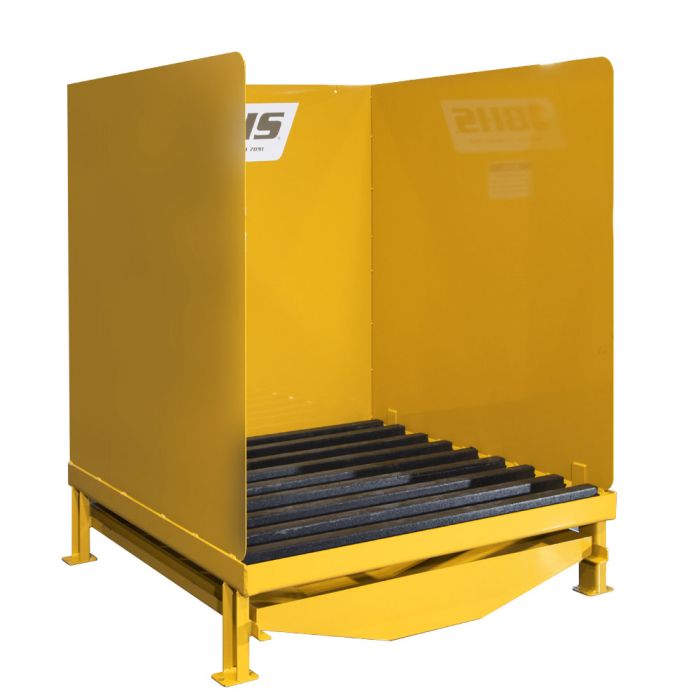

Forklift battery wash station equipped with an acid-resistant, non-conductive, polyethylene decking for vertically extracted forklift batteries.

The BHS Hardwood Wash Station (HWS) provides a safe and convenient space to wash vertically extracted lift truck batteries. Contain overspray and add life to your forklift batteries by using this rugged battery maintenance equipment.

The HWS has a recycled, polyethylene decking that is acid-resistant, non-conductive, and environmentally friendly. The 48-inch side panels keep wastewater confined to the station's 23-gallon drain tray. The drain tray is removable for easy cleaning and has a 1-inch NPT coupling.

Both the mild steel and stainless steel models offer fork pockets as an optional feature. These welded pockets make transporting wash stations a simple and quick process.

The HWS is ideal for use with the BHS Recirculation/Neutralization Systems. Using the Hardwood Wash Station with one of these systems creates a closed loop for cleaning industrial batteries. This economical setup allows you to reuse wastewater and avoid disposal fees, which is good for budgets and the environment.

Simplify the industrial battery washing process with an easy-to-use, heavy-duty wash station. Contact our sales team at 1.800.BHS.9500 to learn more about Battery Wash Equipment or to find a local dealer. Custom-built models are available to meet specifications.

Features & Benefits

  • 12" (305 mm) deck height standard
  • 48" (1219 mm) side panels
  • 4,000 lb (1814 kg) load capacity
  • Recycled, polyethylene decking is acid resistant, nonconductive, and environmentally friendly
  • Drain tray is removable for easy cleaning and has 1” (25 mm) NPT coupling
  • Designed as stand-alone or for use with Recirculation / Neutralization System (RNS)
  • Custom-built models available to meet specifications



Frame Construction

Mild Steel

Stainless Steel

Wash Deck Material

HDPE Poly Lumber

Drain Port Size

1” NPT / 25 mm

Drain Tray Capacity

23 gal / 87 L (Approximate)

Maximum Weight Capacity

4,000 lb / 1814 kg

Overall Depth

48” / 1219 mm

Overall Width

48” / 1219 mm

Overall Height

60” / 1524 mm (without option HWS-FP)

Height from Floor to Top of Wash Deck

12” / 305 mm

Wash Deck Area

16 ft2 / 1.5 m2

Shipping Weight

500 lb / 227 kg

Fork Pocket (HWS-FP)*
Welded fork pockets for added mobility Note: 17.75" (451 mm) deck height
Stainless Steel Fork Pockets (HWS-FP-SS)*
Welded fork pockets for added mobility (available on HWS-3-SS model only) Note: 17.75" (451 mm) deck height
* Not to be used while battery is on HWS
