The BHS Electrical Distribution System (EDS) provides flexible power distribution to all 480-volt, 3-phase components in an Operator Aboard Battery Extractor System, including the Battery Extractor, chargers, and Battery Wash Equipment.

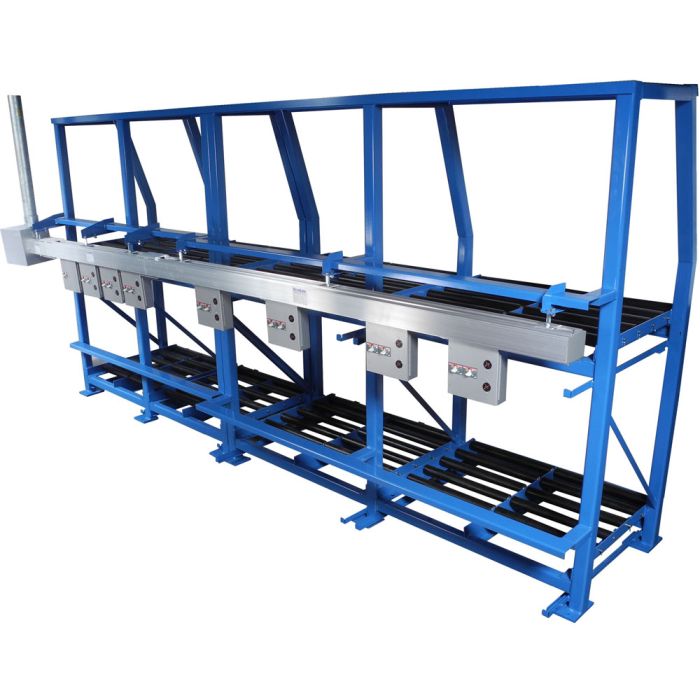

The BHS Electrical Distribution System (EDS) provides flexible power distribution to all 480-volt, 3-phase components in an Operator Aboard Battery Extractor System, including the Battery Extractor, chargers, and Battery Wash Equipment. The EDS is a stand-mounted, high-density system that is customized using track busway that can be tapped at any location with a simple turn-n-lock connection.
The EDS simplifies the process of powering battery handling equipment by reducing the jumble of cords and providing even, dependable output. Instead of tangled cables and costly add-ons, rely on the EDS to safely power all parts of an Operator Aboard Battery Extractor.
The extruded aluminum housing provides a 100-percent ground path, and a dedicated grounding conductor is also available.
Every battery room needs a dedicated Electrical Distribution System—trust BHS to provide yours. Contact our sales team at 1.800.BHS.9500 to learn more about the Electrical Distribution System or other Electrical Distribution options.
Features & Benefits
- Easily accommodates modification or expansion
- Maintenance-free design saves space
- Eliminates interruptions in power
- Track Busway consists of four conductors allowing for a maximum capacity of 800 A / 600 V ac or dc
- Circuit Breaker Units tap off power from Track Busway with unique turn-n-lock "compression fit" connection
- Standard short circuit capacity for 50 kA
- Circuit breaker units available with standard NEMA L16-20 or L16-30 receptacles
- Extruded aluminum housing provides 100% grounding path, dedicated conductor for ground is also available
|
MAXIMUM VOLTAGE |
600 V |
|
AMPACITY |
800 Max Amp Capacity |
|
FREQUENCY |
50 or 60 Hz |
|
CONDUCTORS |
Qty 4 (Phases A, B, C and Neutral) |
|
RATED SHORT CIRCUIT CAPACITY |
50 kA |
|
AMBIENT OPERATING TEMP |
40°C / 104°F 60°C / 140°F–0.8 Amp Rating Multiplier |
|
GROUNDING |
Aluminum Casing, 100% Grounding Path |
|
VOLTAGE DROP |
(1) volt per 48 ft (14.6 m) for 250 A & 400 A Systems (1) volt per 65 ft (19.8 m) for 600 A Systems (1) volt per 25 ft (7.6 m) for 800 A Systems |
|
HOUSING MATERIAL |
Extruded Aluminum |
|
HOUSING DIMENSIONS |
250T5: 2-20’ L x 4.36” W x 5.05” H 400T5 & 600T5: 2-20’ L x 5.8” W x 5.05” H 800T5: 2-10’ L x 6.4” W x 5.05” H |
|
CONDUCTOR |
Nickel plated Aluminum and Copper |
