Double Stack Forklift Battery System Stands

Overview

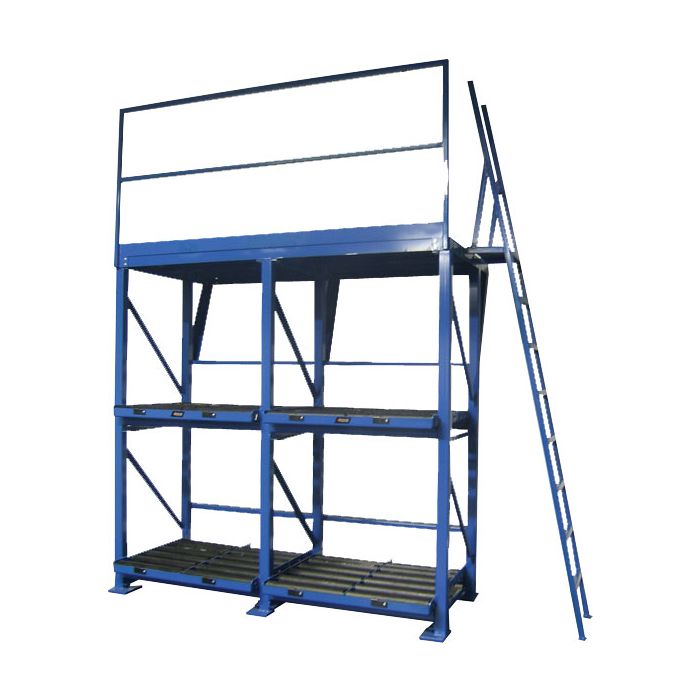

BHS Double Stack System Stands (BS-DS) provide the ideal location to charge, store, and exchange lift truck batteries with convenience and ease. These heavy-duty, steel-constructed stands complement a Double Stack Operator Aboard Battery Extractor to create an optimal battery-charging process.

The rugged BS-DS provides the central infrastructure of a safe and efficient battery room. Its spark-proof, poly-sleeved rollers extend product life and reduce corrosive buildup that can occur from contact with electrolyte residue on industrial batteries.

The Double Stack System Stand features charger-cable routing holes, charger anchoring slots, welded feet, and auxiliary backstops to protect equipment and optimize work flow. The stand securely stores batteries while allowing plentiful access. Over a dozen compartment configurations, safety features, and other options are available to provide custom solutions.

Optimize your changeouts and charging with a Double Stack System Stand from BHS. Contact our sales team at 1.800.BHS.9500 to learn more about Forklift Battery and Charger Stands or to find a local dealer.

Features & Benefits

Six spark-proof, poly-sleeved rollers per compartment reduce corrosive build-up and extend product life
Models available in various compartment widths to accommodate batteries from 12” to 48” (305 mm to 1219 mm)
40” (1016 mm) standard compartment depth
Hitch pin-secured roller axles for ease of maintenance
Rearward-pitched battery slots to assist in battery retention
Welded system feet anchor to the ground for unfailing stability
Durable powder-coat finish resists scratches and corrosion
Charger connector mounting holes
Charger anchoring slots for securing most makes of chargers
Flip-up battery safety stop per compartment
Compatible with stainless steel Drip Pans which provide OSHA-compliant spill containment
Custom designs available to fit all battery changing requirements
Foot pad dimensions: 0.75” x 6” x 8” (19 mm x 152 mm x 203 mm)
Charger cable routing holes help protect cables from damage
Auxiliary backstops (if required) provide compartment depths from 27.5” to 40” (699 mm to 1016 mm) pending battery specifications*

* Consult Factory

Specifications

Model	Roller Compartment Width	Frame Width
BS-15-4-DS	15" / 381 mm	38" / 965 mm
BS-15-8-DS	15" / 381 mm	73" / 1854 mm
BS-18-4-DS	18" / 457 mm	44" / 1118 mm
BS-18-8-DS	18" / 457 mm	85" / 2159 mm
BS-21-4-DS	21" / 533 mm	50" / 1270 mm
BS-21-8-DS	21" / 533 mm	97" / 2464 mm
BS-24-4-DS	24" / 610 mm	56" / 1422 mm
BS-24-8-DS	24" / 610 mm	109" / 2769 mm
BS-30-2-DS	30" / 762 mm	38" / 965 mm
BS-30-4-DS	30" / 762 mm	73" / 1854 mm
BS-36-2-DS	36" / 914 mm	44" / 1118 mm
BS-36-4-DS	36" / 914 mm	85" / 2159 mm
BS-42-2-DS	42" / 1067 mm	50" / 1270 mm
BS-42-4-DS	42" / 1067 mm	97" / 2464 mm
BS-48-2-DS	48" / 1219 mm	56" x 1422 mm
BS-48-4-DS	48" / 1219 mm	109" / 2769 mm

Options

Catwalk (BS-CW): Provides walk area for charger maintenance and comes standard with front rail
Ladder (BS-LDR): Provides easy access to catwalk used for charger maintenance
End Rail (BS-CW-ER): Encloses charger servicing area on end of system
Rear Rail (BS-CW-RR): Encloses charger servicing area on rear of system
Extended Compartment Depth (-46): Increases roller compartment depth to 46” (1168 mm)
Extended Compartment Depth (-48): Increases roller compartment depth to 48” (1219 mm)
Extended Compartment Depth (-50): Increases roller compartment depth to 50” (1270 mm)
Drip Pan (DP): Contains spills, maintaining a cleaner, safer environment
Poly Lead Roller: Replaces the first roller in each compartment with a polyethylene roller to eliminate potential bearing failure in frequent change-out environments
Rubber Backstop (BS-RBR-STP): Cushions battery during placement into stand Note: One per stand required, slightly reduces compartment depth
Sliding SB Connector Kit (#80892001): Allows SB connector to be moved and secured anywhere along the length of the SB connector bracket
Rear Strut Mount (BS-RSM): Mount vertical style chargers along the rear of multi-level battery stands on a welded strut channel
Top Strut Mount (BS-TSM): Mount vertical style chargers above multi-level battery stands on a welded strut channel. Adequate clearance required.
