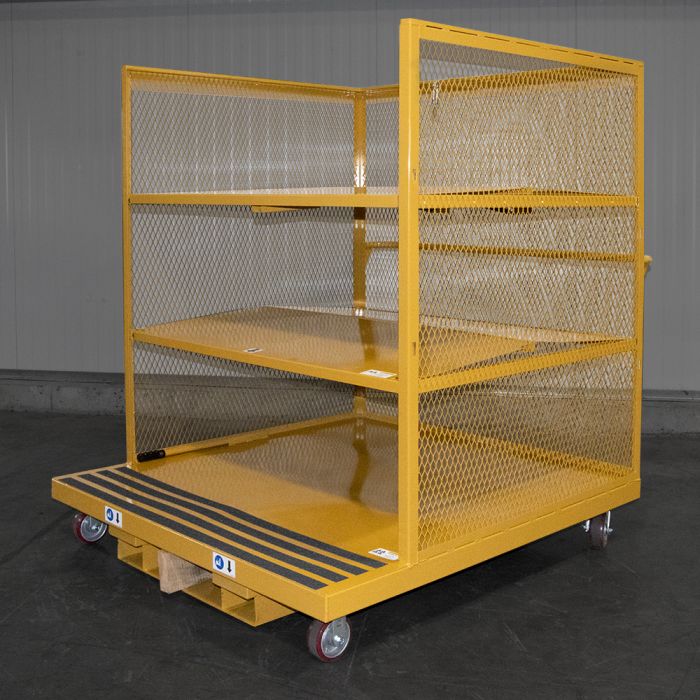

Custom Order Picking Cart, 60 X 56, Folding Shelves

The design of this custom cart uses the foundation of BHS' standard Order Picking Carts and adds a unique feature to address adjustable and/or removable shelves. Instead of our standard, fixed position shelves, this cart uses hinged, folding shelves. This feature eliminates the risk of injury and struggle of adjusting and/or removing heavy, awkward shelves, eliminates the need to store removed shelves when not in use, and allows the shelves to be adjusted when needed – even when the cart is in use at an elevated level while actively picking product.

Two folding shelves, each equipped with gas shocks to reduce effort, fold in the center and at the rear, allowing the shelves to fold in half, upward against the back of the cart. Tracks on each side of the shelves are equipped with a series of holes allowing the shelves to be folded back in 3” intervals. Pins are placed in holes to secure the shelves in the desired position. Shelves can be folded independent of each other, providing convenient flexibility.

Discuss the options for your next Order Picking Cart by calling the BHS sales team at 1.800.BHS.9500.

Features & Benefits

• Overall Dimensions: 66" (1676 mm) long x 56" (1422 mm) wide x 69.125" (1756 mm) tall
• Platform Size: 60" (1524 mm) x 56" (1422 mm)
• Platform Height: 9.125" (232 mm)
• 60.4” (1534 mm) tall expanded metal sides and back
• Shelf Depth 46” (1168 mm)
• 1000 lb (454 kg) Total Capacity / 200 lb (91 kg) Shelf Capacity
• 638 lb (289 kg) Weight
• Folding shelves allow cart to be easily configured for picking any size product
• 19” (483 mm) clear between shelves when unfolded
• Two swivel with brakes and two rigid 5" x 2" (127 mm x 51 mm) poly casters
• Push handle for manual maneuvering
• Heavy-duty steel construction for added reliability
• Durable powder coat finish resists both corrosion and scratches
• Fork pocket openings 6" (152 mm) x 3.5" (89 mm) x 16.375" (416 mm) inside spread
• Custom designs available
