Compartment Roller Tray, Low Profile
Only %1 left
SKU
CRTL

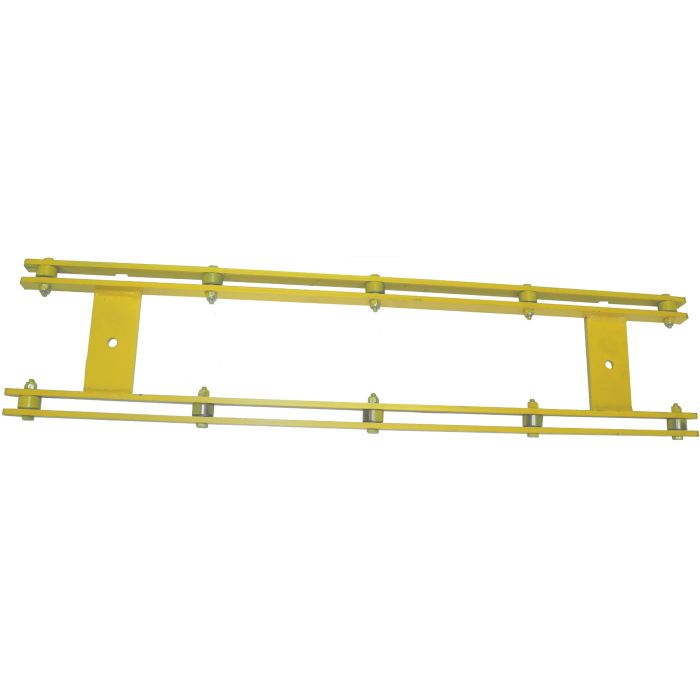

Compartment Roller Trays are engineered to assist in converting a forklift battery compartment from overhead extraction to side extraction. The Low Profile CRT models come standard with 1" height.
BHS offers Roller Trays for forklift battery compartments of all shapes and sizes, allowing the conversion from overhead- to side-extraction for virtually any industrial truck. Choose the Compartment Roller Tray – Low Profile (CRTL) when a lift truck's battery bed is short on room.
This unique low-profile design occupies a minimal amount of space in the battery compartment, allowing extra clearance for the installation and removal of batteries. The CRTL accomplishes this task with unique, double-track construction. The frame is made of heavy-duty steel, and rollers are designed to bear the weight of forklift batteries for decades of use.
Each Compartment Roller Tray is finished with the BHS standard powder coating. This topcoat resists the corrosive effect of spilled electrolyte while helping to absorb the great weights of forklift batteries, without scratches or failure.
The CRTL offers simple and secure installation with two pre-drilled anchor holes. Additional welding will make the change even more reliable. For temporary, drop-in installation, choose the Compartment Roller Tray – Low Profile Plate Mount (CRTL-PM).
The BHS Compartment Roller Tray – Low Profile comes standard with 1-inch (25 millimeter) height. While all three standard models share a length of 30 inches, choose between widths that range from 7 to 16 inches.
If the battery compartments in your lift truck fleet have unconventional dimensions, BHS will custom engineer and manufacture Compartment Roller Trays to meet any specification. Contact the BHS sales team at 1.800.BHS.9500 to learn more about these Low Profile Compartment Roller Trays, or to start the conversation about a custom job.
Features & Benefits
- Engineered for ease and efficiency
- 1" (25 mm) standard height; 30" (762 mm) length
- Heavy duty construction for added reliability
- Other sizes built to specifications
|
CRTL-7 |
CRTL-12 |
CRTL-16 |
|
|
Width (A) |
7” / 178 mm |
12” / 305 mm |
16” / 406 mm |
|
Length (B) |
30” / 762 mm |
30” / 762 mm |
30” / 762 mm |
|
Height (C) |
1” / 25 mm |
1” / 25 mm |
1” / 25 mm |
|
Mounting Hole Centers (D) |
22” / 559 mm |
22” / 559 mm |
22” / 559 mm |
|
Mounting Hole Centers (E) |
3 1/2” / 89 mm |
6” / 152 mm |
8” / 203 mm |
|
Capacity |
2,000 lb / 907 kg |
2,000 lb / 907 kg |
2,000 lb / 907 kg |
|
Color |
OSHA Safety Yellow |
OSHA Safety Yellow |
OSHA Safety Yellow |
|
No. of Rollers |
10 |
10 |
10 |
|
Frame Material |
1/4” x 7/8” & 1/4” x 2” 6 mm x 22 mm & 6 mm x 51 mm |
1/4” x 7/8” & 1/4” x 2” 6 mm x 22 mm & 6 mm x 51 mm |
1/4” x 7/8” & 1/4” x 2” 6 mm x 22 mm & 6 mm x 51 mm |
|
Roller Diameter |
7/8” / 22 mm |
7/8” / 22 mm |
7/8” / 22 mm |
|
Mounting Hole Size Diameter |
13/32” / 10 mm |
13/32” / 10 mm |
13/32” / 10 mm |
|
Mounting Requirement |
Drill / Tap or Tack Weld |
Drill / Tap or Tack Weld |
Drill / Tap or Tack Weld |
