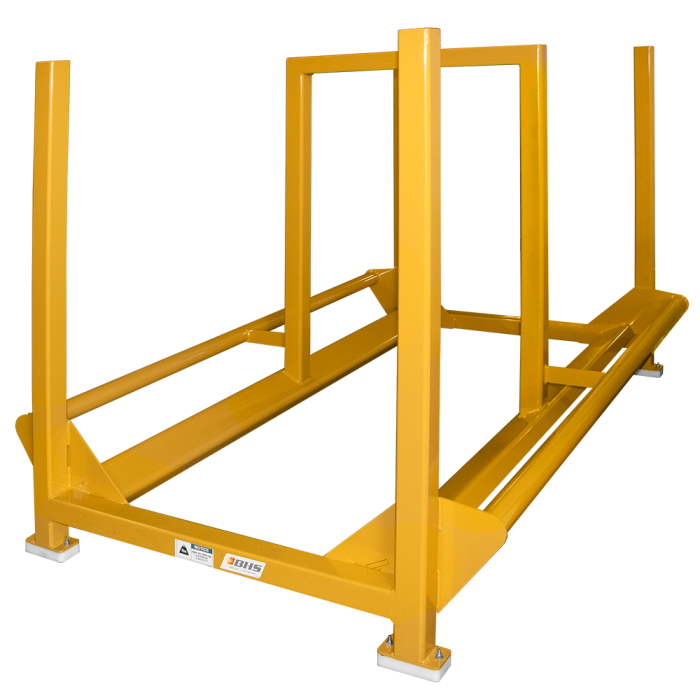

Steel Coil Rack

The BHS Steel Coil Rack securely stores bundled coils of steel, copper, or other raw materials. This coil storage system optimizes warehouse space, increasing total storage capacity without sacrificing accessibility. UHMW foot pads protect floors and equipment alike, while the dual-coil design provides a convenient alternative to coil bunks (coil chocks) or single-unit standard coil racks. The Steel Coil Rack does not require anchoring, allowing it to be relocated anywhere metal coils need to be stored.

This coil storage rack is designed to “cradle” the coils, providing secure storage while allowing easy access for vertical loading and unloading with common material handling equipment. Corner posts ensure the coils are positioned within the rack while a center divider protects coils from scratches. Welded steel construction provides superior strength for a long, dependable service life.

BHS offers custom designs for coil storage solutions and more. Discuss options for your next Steel Coil Rack by calling the BHS sales team at 1.800.BHS.9500.

Features and Benefits

• Overall dimensions: 76” (1930 mm) wide x 50” (1270 mm) deep x 54” (1372 mm) tall
• 6,400 lb (2903 kg) capacity
• 463 lb (210 kg) weight
• Formed channels and heavy-walled round tubes comprise a cradle-type design to hold coils secure while allowing easy loading and unloading
• Square tube center divider provides additional support while keeping coils separated
• 1” thick UHMW foot pads prevent damage to the floor in the event rack slides on floor during loading, unloading or repositioning around the warehouse
• Designed to hold (2) 60” (1524 mm) diameter x 34” (863 mm) long coils
• Two integral spool holders to hold up to 18" diameter (457 mm) x 8" wide (203 mm) spools or rolls such as labels or packing materials
• This platform comes powder-coated in Yellow
• Can be customized for any application
• Proudly designed and manufactured in the USA
