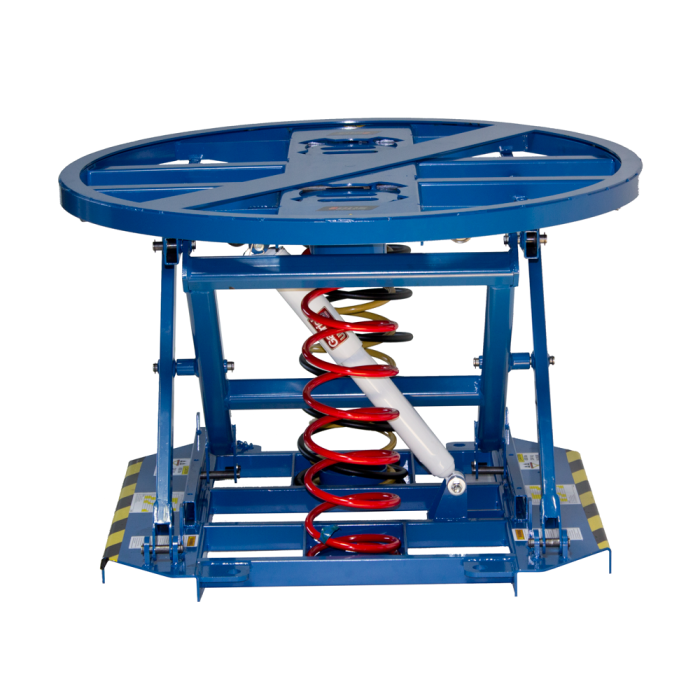

Spring Loaded Self Leveling Pallet Carousel Skid Positioner

Only %1 left
SKU
PCSP-S
The BHS Pallet Carousel & Skid Positioner (PCSP) makes loading and unloading pallets and skids safe, simple, and quick.

The BHS Pallet Carousel & Skid Positioner (PCSP) makes loading and unloading pallets and skids safe, simple, and quick. The PCSP is available in either a pneumatic airbag-actuated model or a spring-actuated model, both providing an ergonomic solution for palletizing. The PCSP reduces the amount of operator bending and reaching required during loading or unloading because it automatically raises and lowers as weight is added or removed from a pallet or skid.

The Pallet Carousel & Skid Positioner’s turntable rotates a full 360°, requiring less worker movement while increasing efficiency. The turntable top is equipped with easy turning, anti-friction bearings allowing users to spin loads, eliminating the need for walking around it. Load and unload pallets without bending, reaching, walking, or stooping. The self-leveling PCSP automatically positions pallets at a comfortable working height as layers of product are added or removed.

Features & Benefits

  • Automatically positions loads between 10.5” and 27.75” (267 mm and 705 mm)
  • Small base allows workers to stand up close to the unit for better ergonomics
  • Full 360° tabletop rotation eliminates need to reach across tabletop
  • Stable design eliminates need to anchor the unit to the floor
  • 4,500 lb (2041 kg) maximum capacity
  • 400 lb (181 kg) minimum capacity for self-leveling operation
  • Custom platforms available
  • Sealed ball bearings for easy rotating
  • Dampener provides smooth, gradual raising and lowering without bounce
  • Built in two-way fork pockets conveniently allow transport of unit to workspace
  • Durable powder coat finish
  • Three heavy-duty springs automatically adjust pallet height
  • Completely automatic, requiring no power supply for operation

Model

Tabletop Description

Vertical Travel

Capacity

Table Height

Base Width

Base Length

Overall Width

Overall Length

Min

Max

PCSP-S-43

43” Round Open Platform

17.25”

438 mm

4,500 lb

2041 kg

10.5”

266 mm

27.75”

705 mm

36.94”

938 mm

36.56”

929 mm

43”

1092 mm

43”

1092 mm

PCSP-S-43-SC

43” Round Solid Platform

17.25”

438 mm

4,500 lb

2041 kg

10.5”

266 mm

27.75”

705 mm

36.94”

938 mm

36.56”

929 mm

43”

1092 mm

43”

1092 mm

PCSP-S-43-SSC

43” Round Stainless Steel Solid Platform

17.25”

438 mm

4,500 lb

2041 kg

10.5”

266 mm

27.75”

705 mm

36.94”

938 mm

36.56”

929 mm

43”

1092 mm

43”

1092 mm

PCSP-S-4548

45” x 48” Square Solid Platform

17.25”

438 mm

4,500 lb

2041 kg

10.5”

266 mm

27.75”

705 mm

36.94”

938 mm

36.56”

929 mm

48”

1219 mm

45”

1143 mm

PCSP-S-4548-ST

45” x 48” Square Solid Platform with Skid Tape and Containment Lip

17.25”

438 mm

4,500 lb

2041 kg

10.5”

266 mm

27.75”

705 mm

36.94”

938 mm

36.56”

929 mm

48”

1219 mm

45”

1143 mm

PCSP-S-4548-ST-NL

45” x 48” Square Solid Platform with Skid Tape - No Containment Lip

17.25”

438 mm

4,500 lb

2041 kg

10.5”

266 mm

27.75”

705 mm

36.94”

938 mm

36.56”

929 mm

48”

1219 mm

45”

1143 mm

Accordion Skirt Guard (PCSP-ASG)
Encloses underside of lift table, protecting the lift mechanism from dirt and debris.
Casters (PCSP-C)
6” (152 mm) corrosion resistant phenolic casters for mobility (2 locking swivel casters and 2 non-locking, swivel casters). Adds 7.5” to all heights on standard fork pocket model.
Threaded Rod Feet (PCSP-TRF)
Four adjustable threaded rod feet can be independently adjusted to maintain levelness on uneven or damaged floors.

Video Resources

Pallet Carousel & Skid Positioner Material Handling Minute

Pallet Carousel & Skid Positioner
