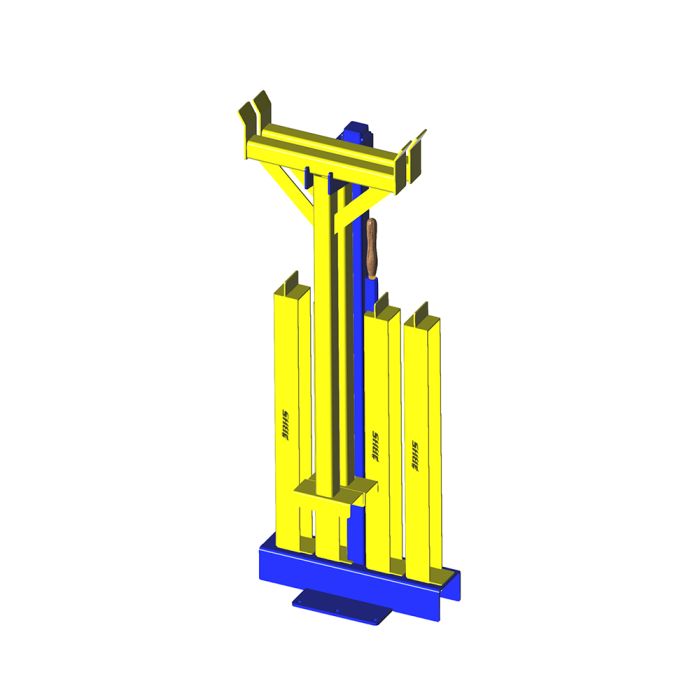

Some maintenance tasks, and possible repairs, will require the technician to work from underneath the inner carriage. To do so safely, the carriage must be secured in a raised position. BHS offers Service Stands specifically designed for each BE model to securely support the inner carriage. BHS also offers Equalization (EQ) Chain Adjustment Stops, which are designed to hold the inner carriage level with the outer frame at all four corners to allow for proper EQ chain adjustment. This service stand kit is designed for Quad Stack Extractors and comes with a staging stand.
Includes:
| QTY | PART# | DESCRIPTION |
|---|---|---|
| 4 | 90015120 | 36" SERVICE STAND |
| 2 | 46815001 | SERVICE STAND, BE-DS/TS/QS |
| 1 | 43095001 | STAGING STAND |
| 1 | PL0710 | INSTRUCTIONS HOLDER |
| 2 | CR-580076 | "S"-HOOK |
| 1 | 80292001-i | BE SERVICE STAND INSTALLATION INSTRUCTIONS |
| 1 | 80292002-i | EQUALIZATION CHAIN RESETTING INSTRUCTIONS |
| 1 | TP-606 | BE SAFETY AND DE-ENERGIZATION PROCEDURE |
| 1 | TP-608 | POWER ROLLER TRIMMING PROCEDURE |
| 4 | HW1084 | ANCHOR-BOLT-1/2" X 4" |
| 1 | 43080100 | TRIMMING TOOL |
