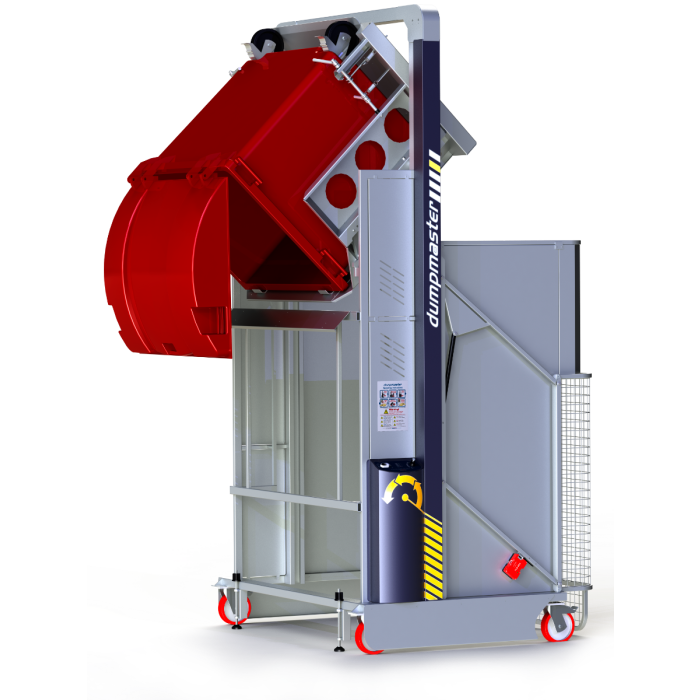

MegaDumper® Hydraulic Bin Dumper

SKU

The ultra-heavy duty MegaDumper^® was designed for emptying 174 and 290 gallon (660 and 1100 Liter) bins weighing up to 1,323 pounds (600 kilograms) and can be customized to tip almost any container, at heights beyond 33 feet (10 meters).

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The MegaDumper ^® provides a heavy-duty industrial solution for emptying large bins at weights of up to 1,323 pounds (600 kilograms). The MegaDumper is based on the proven design of the Dumpmaster^® and is one of the most reliable, safe, and easy-to-use industrial bin dumpers available. The MegaDumper comes standard with a suite of safety features including full-cage guarding.

The MegaDumper uses an ultra-reliable electro-hydraulic mechanism, which means managers don’t have to worry about costly upkeep and repairs. This Bin Dumper has a fully galvanized frame and cradle making it suitable for both indoor and outdoor use. Optional full or partial stainless-steel construction is available for corrosive or hygiene-critical environments.

The MegaDumper comes with an impressive array of features to keep operators safe. Besides the full-cage guarding, this state-of-the-art Bin Dumper also has safe cradle lowering, a door interlock system, a cradle interlock system, and a suite of optional features for enhanced safety.

The best part about the MegaDumper is that it’s fully customizable. A custom MegaDumper can be modified to empty bins of unusual sizes or shapes. Call our sales team at 1.800.BHS.9500 to find out how a MegaDumper can improve safety and efficiency in industrial settings.

Features & Benefits

Designed for emptying 174 and 290 gallon (660 and 1100 Liter) bins but can be customized to tip almost any container
1,323 lb (600 kg) lifting capacity
Standard tip heights from 47” to over 33' (1200 mm to 6000 mm)
Typical Duty Cycle: 35,270 lb (16000 kg) of material per charge or 22,040 lb (10000 kg) per hour on continuous charge
Power options include 3-phase, battery power pack, or compressed air; battery-powered dumpers have a sealed battery and industrial-quality ‘float’ charger built in
Hydraulic-powered, super heavy-duty
Simple, spill-resistant controls with IP56 ingress protection
Weight of bin stays within machine footprint throughout dumping cycle to ensure stability
Standard 8” (200 mm) casters (two with brakes) for mobility or can be bolted in place via optional bolt-down lug
Cradle requires no clamping, and uses a simple retainment system which needs almost no operator manipulation
Cradles available to suit all common industrial containers; custom cradles available
Guarding includes a swing-up door with solenoid operated door lock, preventing all access to moving parts while machine is in operation
Fully galvanized frame and cradle, suitable for indoor or outdoor use

Specifications

Available Models

MD (Contact BHS for Models and Specifications)

Options

Auto-Cycle Operation
Available for mains-powered bin dumpers to enable operators to leave the machine to complete the cycle unattended.

Bolt Down Kit

Secure the dumper with four galvanized steel lugs for permanent installation.

Custom Controls
Operator controls can be mounted anywhere on the machine or remotely to suit productivity or safety requirements. Dual-hand controls are also available to prevent the operator from engaging in other interactions.

Custom Designs
Contact us with your specific requirements.

Foot Guard Panels
Foot guards prevent operators’ feet from going under the machine frame.

Front Panel
A guard panel is available for the front for additional protection. Note this face is normally up against the bin being dumped into.

Left-Hinged Door
The door on standard MegaDumper® machines is hinged on the right-hand side Doors hinged on opposite are available.

Operator Guard
Unbreakable plastic guarding panel can be fitted adjacent to operator controls to shield operator from liquids or harmful materials.

Polycarbonate (PET-G) Guarding
Unbreakable plastic guarding panels are available in place of the standard 1” x 1” (25 mm x 25 mm) wire mesh cage.

Safety Standards
Bin dumpers can be specified to meet international standards and/or CE regulations for an additional cost, depending on environment, application, and other factors

Solar Panel (Battery-powered units only)
Battery-powered bin dumpers being used outside can be fitted with a solar panel. Depending on the amount of direct sunlight available, up to two tons (1814 kg) can be emptied per day using solar power alone.

Spare Battery
Spare battery pack, 24V/40Ah GEL, plug & play, complete with carry case.

Stainless-Steel Construction
Bin dumpers are available either partially or completely constructed from high-grade 304 stainless steel, suitable for hygiene-critical or corrosive environments such as food production or chemical processing. Corrosion-resistant lifting chains and fittings are also available.

Steel Bucket Cradle
Powder coated steel bucket cradle includes adjustable hoop retainer and adjustable packer blocks. Bolted to the main tote cradle plates, the Bucket Cradle accommodates all tubs that fit within 27” wide (686 mm), 24” deep (609.5 mm), 47” high (1194 mm), including all standard steel drums and BRUTE® Bins.

Tipping Chute
Frame-mounted tipping chute is available for situations where the machine cannot be flush with the bin or hopper. Note: the tipping height may need to be increased to accommodate the slope of the chute.
