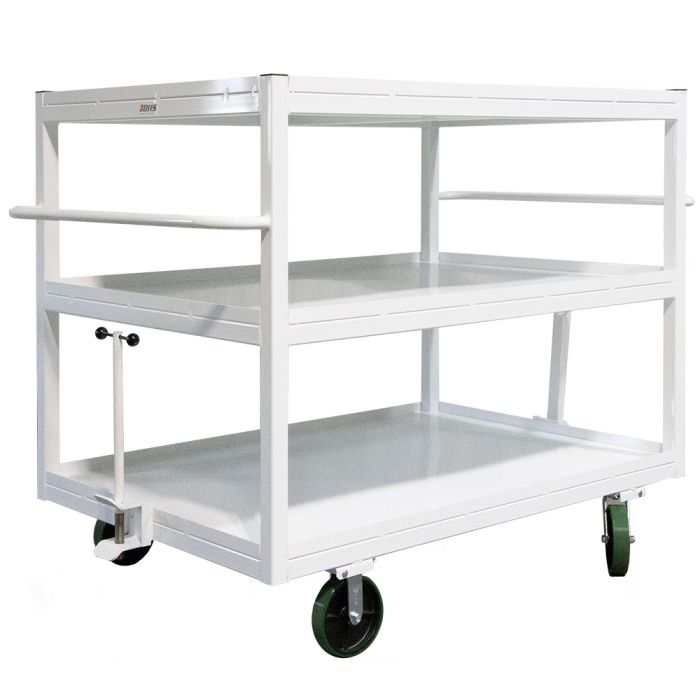

Industrial Trailer, 3 Shelves, 46 x 66

This custom Industrial Trailer from BHS combines all the features of standard dual-steer Tugger Carts and adds push handles, turning the tugger cart into a manual push cart. Multiple trailers can be hitched together to create a logistics train that when pulled by a tugger truck, allows a single operator to deliver a large quantity of product throughout an entire facility. Perimeter lips around the cart deck and shelves ensure product stays contained on the cart during transit.

With a folding tow bar and rear hitch, tugger carts will attach to most standard tugger truck hitches, and quickly uncouple to drop off carts at designated workstations where the product is needed. The sturdy push handles allow the cart to be manually maneuvered when not connected to a tugger or train. Empty carts can be connected back to the train and returned to be reloaded with product for re-distribution.

Custom engineered models are available on request. To learn more about Industrial Trailers and other material handling solutions from BHS, contact our sales team at 1.800.9500.

Features & Benefits

• Overall Dimensions: 93.25” (2369 mm) long x 46” (1168 mm) wide x 57.375” (1457 mm) tall
• 77.25” (1962 mm) long with tow bar folded up
• 1000 lb (454 kg) total capacity, 300 lb (136 kg) per shelf capacity
• 500 lb (228 kg) Weight
• Compatible with most common tuggers, piloted or automated
• Horizontal push/pull bars on each end for ergonomic manual use
• Lipped shelves secure contents, with or without bins
• Two (2) front swivel casters enhance maneuverability
• Vertically adjustable front tow bar locks flat against frame between uses
• Rear hitch couple trailers together effortlessly
• Welded steel frame with a chemical and acid resistant powder-coat finish in Gloss White
• Two rigid and two swivel 8" x 2" (203 mm x 51 mm) poly coated casters
• 18.5” (770 mm) height between shelves, with a lidless top for taller items
• Custom designs available
