Custom Side Loading Platform Truck, Single V-Groove Casters for Track Mounting

Only %1 left

SKU

PFT-NS

The Custom Platform Truck equipped with guide track allows product to be quickly and safely maneuvered through confined spaces or areas where lift truck access is not possible. When equipped with an optional roller bed attached to the platform, the custom platform truck becomes an economical solution for transferring product between unconnected conveyor lines.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

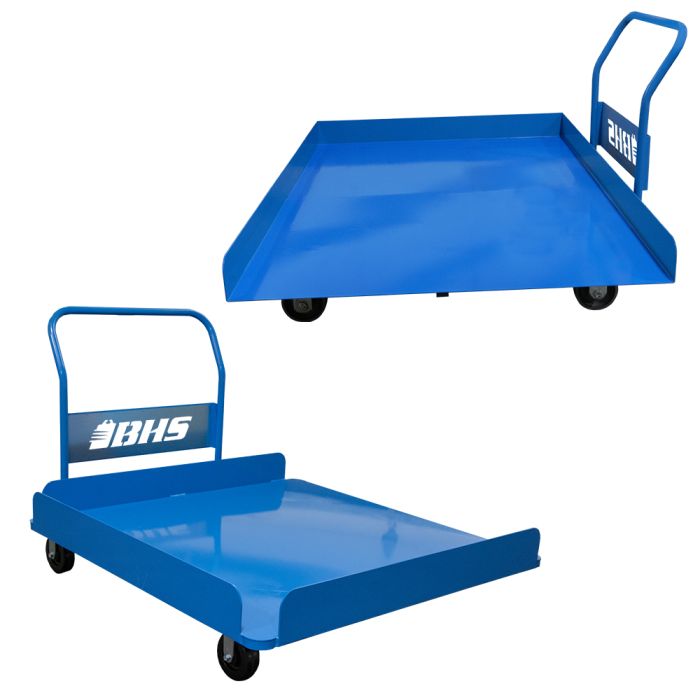

This customized Platform Truck from BHS combines features of our standard Platform Trucks and adds single guidance V-groove track and a 3-sided platform for transporting skidded or crated product within a dedicated, defined area. The track-guided platform truck is ideal for moving product within a confined space or narrow aisle were lift truck access is not possible. The platform truck can be loaded in an open or accessible area and then easily and precisely pushed into the area of use as the guide track keeps the platform truck within the dedicated travel path, preventing accidental contact with its surroundings.

A fixed platform allows for the product to be loaded and unloaded from the same side.

To discuss custom Platform Trucks for your unique material handling challenges, call the BHS sales team at 1.800.BHS.9500.

Features & Benefits

Ergonomic push-bar prevents user injury
Friction turntable lock
Single V-groove guidance for precise, dedicated travel *
Two rigid 6” (152 mm) x 2” (51 mm) phenolic casters
Two rigid 6” (152 mm) x 2.5” (64 mm) steel v-groove casters
Three-sided platform keeps product contained on cart
5” (127 mm) Platform sides
Heavy-duty steel construction
Durable powder-coat finish
Custom designs available

* V-groove track required. Track endstops recommended. Track and enstops sold separately.

Specifications

Model	1510001074	1510001073
Platform Width	52” / 1321 mm	52” / 1321 mm
Platform Depth	52” / 1321 mm	76” / 1930 mm
Platform Height	11.5” / 292 mm	11.5” / 292 mm
Overall Width	52” / 1321 mm	48” / 1219 mm
Overall Length	59.75” / 1518 mm	59.75” / 1518 mm
Overall Height	39.5” / 1003 mm	39.5” / 1003 mm
Capacity	1000 lb / 454 kg	1000 lb / 454 kg
Weight	210 lb / 95 kg	275 lb / 125 kg
