Fork Access Battery Stand
Only %1 left
SKU
BSFA
BSFA's include the option of vertical-mount or shelf-mount use and additional models are available with no charger shelf. Models are compatible with either 18- or 27-inch pallet trucks and can accommodate batteries up to 50 inches long.

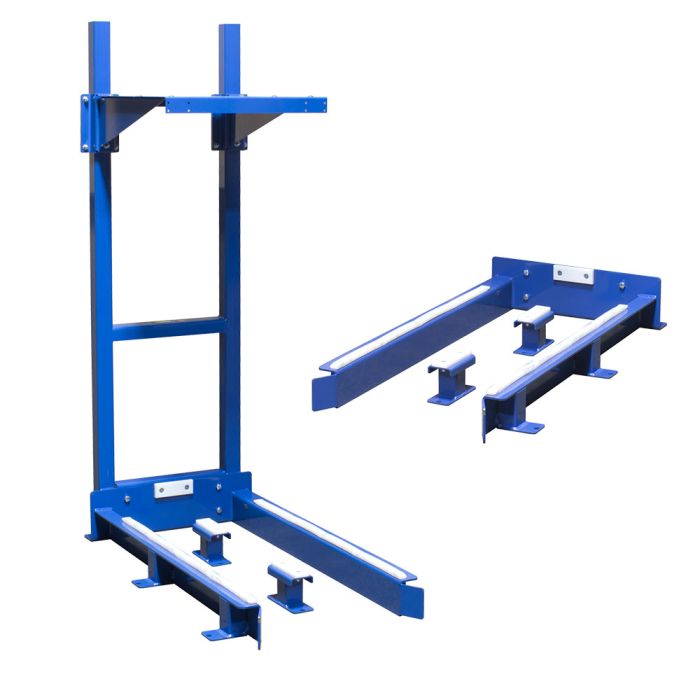

The BHS Fork Access Battery Stand (BSFA) is the perfect solution for lift trucks that don't have battery roller beds and require battery exchange with a pallet truck. This rugged, powder-coated stand stores a single battery in a wide range of sizes.
Spark-proof UHMW polyethylene resting strips prevent direct contact between the battery and stand. An additional UHMW strip on the back rail further isolates the battery. Welded system feet with anchor holes firmly secure the stand, and angled front rails aid in guiding the pallet truck into stand.
Trust the heavy-duty Fork Access Battery Stand to store or charge your valuable industrial batteries. Contact our sales team at 1.800.BHS.9500 to learn more about Battery and Charger Stands or to find a local dealer.
Features & Benefits
- All models are knock down flat, include (2) pedestals for battery center support, and are supplied with different sized shims for installation levelness
- Durable powder coat finish resists both acid and scratches
- Shelf-mount models include SB connector mounting holes
- Vertical-mount models include SB connector mounting bracket
- Angled front rails to aid in guiding pallet truck into stand
- Welded system feet with anchor holes
- Spark proof UHMW polyethylene battery resting strips prevent direct contact between battery and stand
- UHMW strip on back rail for additional battery isolation
- Charger anchoring slots for securing most makes of chargers
- Accommodates batteries up to 50” (1270 mm) long
- 5.125” (130 mm) top of battery slides for battery transfer with most pallet trucks
|
BSFA-526 |
BSFA-526-1 |
BSFA-857 |
BSFA-857-1 |
|
|
Charger Mount Type |
Shelf Mount/Vertical Mount |
No Charger Mount |
Shelf Mount/Vertical Mount |
No Charger Mount |
|
Min Battery Width |
20.688” / 526 mm |
33.75” / 857 mm |
||
|
Max Battery Height* |
38” / 966 mm |
38” / 966 mm |
||
|
Max Battery Length |
50” / 1270 mm |
50” / 1270 mm |
||
|
Battery Deck Height |
5.063” / 129 mm |
5.063” / 129 mm |
||
|
Battery Deck Capacity |
4,000 lb / 1814 kg |
4,000 lb / 1814 kg |
||
|
Charger Mount Capacity |
250 lb / 113 kg |
N/A |
250 lb / 113 kg |
N/A |
|
Charger Shelf (W x D) |
31.5” x 22.5” / 800 mm x 572 mm |
31.5” x 26” / 800 mm x 660 mm |
||
|
Charger Width (-VM only) |
3” / 77 mm Min 15.875” / 404 mm Max |
N/A |
10” / 254 mm Min 24.875” / 632 mm Max |
N/A |
|
Charger Height (-VM only)† |
4” / 102 mm Min 38” / 966 mm Max |
N/A |
4” / 102 mm Min 38” / 966 mm Max |
N/A |
|
Charger Mounting Slots (-VM only) |
0.563” x 15.875” 14 mm x 403 mm |
N/A |
0.563” x 24.875” 14 mm x 632 mm |
N/A |
|
Max O.A. Fork Width |
18” / 458 mm |
27” / 686 mm |
||
|
Min Fork Spacing‡ |
4” / 102 mm |
4” / 102 mm |
||
|
Overall Dimensions (W x D x H) |
29.25” x 52” x 72.5” 743 mm x 1321 mm x 1842 mm |
39.25” x 52” x 72.5” 997 mm x 1321 mm x 1842 mm |
||
