Cantilever Cart

Pipes, bars, rigid conduit, and other long, narrow materials can be a challenge to handle. The Cantilever Cart provides a flexible solution, with fully adjustable shelf arms and frame anchor points at 2-inch (50-millimeter) vertical intervals.

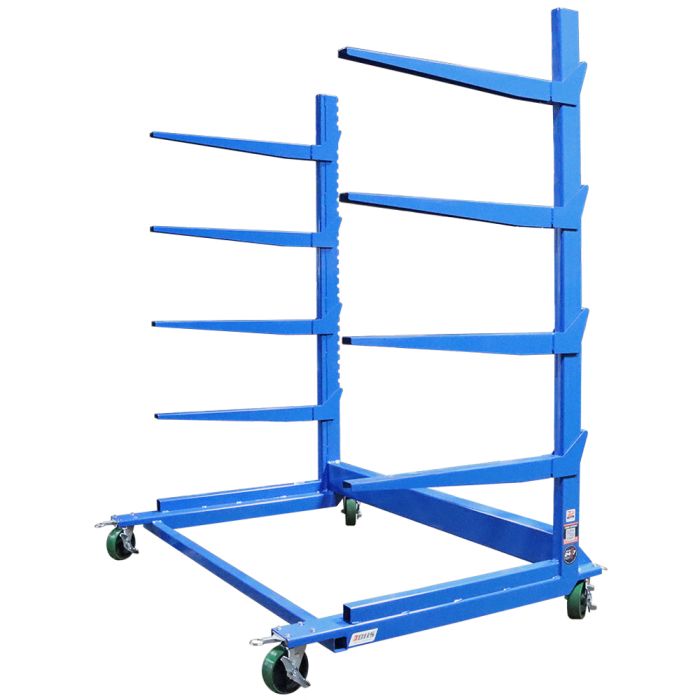

Store long, narrow materials with the adjustable Cantilever Cart (CCA) from BHS. This steel-framed rolling rack features four sets of cantilever shelf arms, each adjustable within 2-inch (50-millimeter) increments—so you can configure the cart to handle a wide variety of awkward materials, from metal tubes and bars to rectangular planters.

Add additional shelf arms, or remove them to accommodate taller products. With 39-inch (991-millimeter) arms and a carrying capacity of 500 pounds (227 kilograms) per shelf (total unit capacity: 2,500 pounds [1134 kilograms]), this Cantilever Cart handles high volumes to maximize operational throughput.

The steel, powder-coated frame sits on four heavy-duty locking casters to allow a single user to move materials throughout the facility. This is an ideal storage solution for otherwise awkward materials in manufacturing, food/beverage, automotive, indoor agriculture operations, and more. For more information about Cantilever Carts and other material handling solutions from BHS, Inc., call our sales team at 1.800.BHS.9500.

Features & Benefits

  • Flexible cantilever storage for pipes, bars, rails, boxes, and other long, narrow materials
  • Phenolic swivel casters lock for stable storage and unlock for full mobility
  • Wide base supports transport via forklift
  • Steel, powder-coated frame for enhanced durability
  • Adjustable shelf height in 2” (50 mm) increments
  • 4 sets of gravity-locking arms standard, with more available
  • Removable shelf arms creates more usable height per shelf
  • Carrying capacity of 250 lb (113 kg) per arm, 500 lb (227 kg) per shelf, and 2,500 lb (1134 kg) per cart
  • Total unit dimensions: 90.7” H x 74” W (2.3 m x 1.8 m)
  • Shelf arm support length: 39” (991 mm)

*CCA cannot be transported while carrying a load.


Maximum Capacity

Arm Support Length

Overall Width

Overall Depth

Overall Height

Arm Height Adjustment Range (From Ground)

Sets of Arms

Storage Levels



2,500 lb

(1134 kg)


(991 mm)


(1880 mm)

56 3/8”

(1432 mm)

90 11/16

(2303 mm)


(660 mm–2184 mm)



390 lb

(177 kg)

Set of Cantilever Arms (CCA-ARM)
Add an additional set of gravity-locking arms for an extra storage shelf. Total unit load must not exceed Maximum Capacity.
Set of Arm End Stops (CCA-ES)
End stops bolt onto the ends of cantilever arms to assist with load retention. Set of two included for one shelf.
Fork Pockets (CCA-FP)
Allows transport of unit via forklift. CCA cannot be transported while carrying a load
Tow Bar & Hitch (CCA-TB)
Provides the ability to transport an empty CCA via tugger to other areas of your facility at a maximum of 5 MPH. CCA cannot be transported while carrying a load
